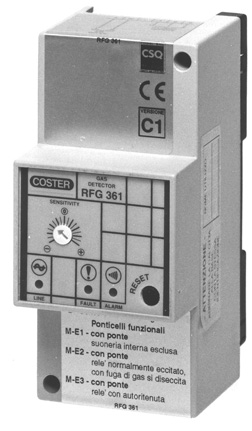

RFG 361

Gas detectors in DIN 3 module case

Application

Monitor, by means of a remote sensor, the concentration of gas in the air, and, when this exceeds the threshold level, activate the operational relay.
Complies with CEI EN 50194 and CEI EN 50244 regulations.
Essential sensors: 1 sensor for methane, LPG, carbon monoxide.

Schematic diagram Certifications Catalogue

Code	Description	Data Sheet
RFG 361	Gas detectors in DIN 3 module case.	G 521

Features

Data sheet

Wiring diagram

Schematic diagram

Certifications

Power supply: 230 V ~; Consumption: 3 VA; DIN 53 x 115 modular enclosure; Protection: IP 40.
Adjustable alarm threshold: methane = 0.5 ... 1.25 %; propane = 0.22 ... 0.56 %; CO = 0.02 ... 0.05 %.
Pre-alarm threshold about 63 % of alarm threshold.
Voltage-free SPDT output; rating 250 V ~, 5 (1) A for control N.O. or N.C. valves.
