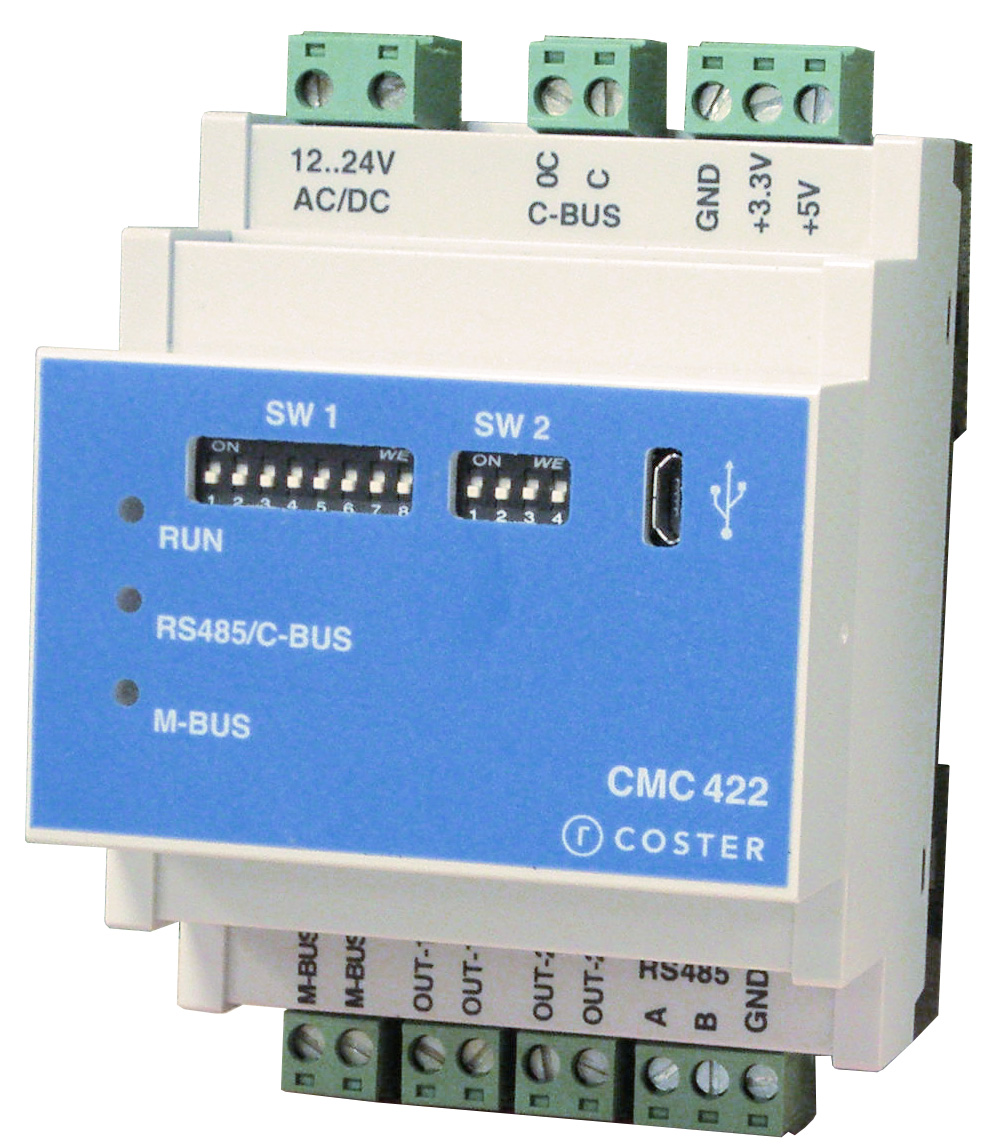

Hardware No.Description 1RS-485 port 1C-Bus port 1M-Bus port 2DIP switches on front panel for device configuration 2Digital outputs 3Signalling LED
Mechanics Operating temperature0…+60 °C Storage temperature-10…+80 °C Weight185 g Size4 DIN modules 90 x 105 x 71 mm (h x w x d)
Electrical Power supply: 230 Vac Power consumption: 3VA Output power supply 1(+3.3 VAUX)+3.3 VDC Output power supply 2 (+5 VAUX)+5 VDC Maximum total output load on +5 VAUX and +3.3VAUX 100 mA Power consumption at maximum load: 3.5VA Front protection rating: IP 20 Rear protection rating:IP 20
