SDW 2..
Print

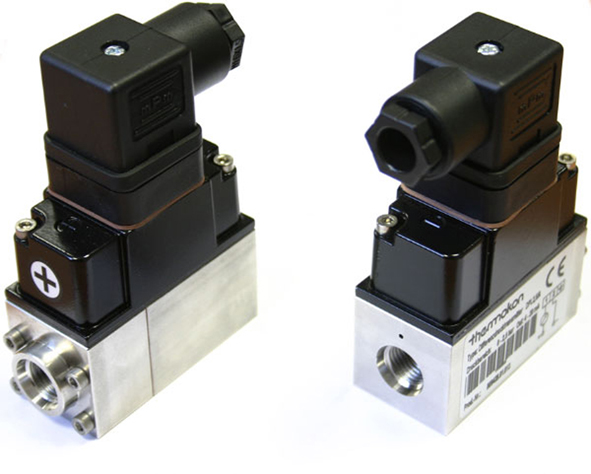

Differential pressure transmitter for liquids
Application
Measures the differential pressure, by means of a ceramic sensor, in hot or cold water plants.
Catalogue
Code
Description
Application
range
Maximum
pressure
Data Sheet
SDW 201
Differential pressure transmitter for liquids
0...1 bar
6 bar
N 422
SDW 202
Differential pressure transmitter for liquids
0....2,5 bar
6 bar
N 422
SDW 206
Differential pressure transmitter for liquids
0...6 bar
16 bar
N 422
Features
Data sheet
Piping connection: two 1/8" screwed female; When the fluid temperature is higher than 80 °C a spiral spacer has to be used.
Protection: IP 54; Output signal: 0 ... 10 V–.
