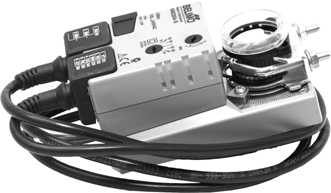

Damper actuators

DAMPER ACTUATORS Application

Actuators suitable for operating dampers in air handling sites.
Rotary movement with 90° rotation angle. Mounted directly on damper rod.

CSN ...

Catalogue

Code	Power supply V~ (VA)	Control	Auxiliary contacts	Dampers m²	Torque N/m	Run s	Data Sheet
CSN 238	230 V~ (6)	2 or 3 points	No	2	10	150	E 922
CSN 238/C	230 V~ (6)	2 or 3 points	1	2	10	150	E 921
CSN 234	24 V~/– (4)	2 or 3 points	No	2	10	150	E 922
CSN 234/C	24 V~/– (4)	2 or 3 points	1	2	10	150	E 922
CSN 204	24 V~/– (4)	2 ... 10 V–	No	2	10	150	E 922

Download

Wiring diagram

Power supply: 230 V~ or 24 V~/-; Protection: IP 54.
