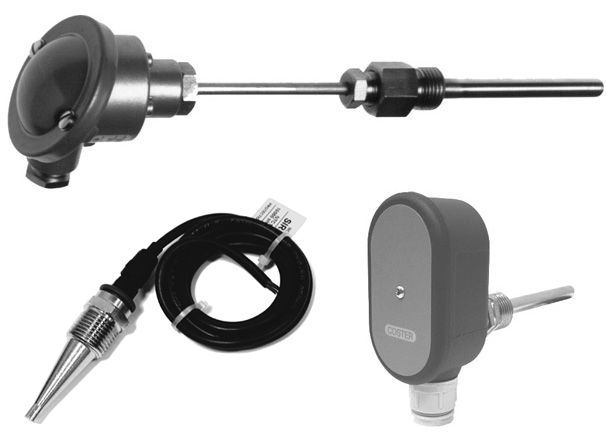

SIH 010 - SIR 010 - STH 001
Immersion temperature sensors (without pocket)
Application
Measure the temperature of the circulating fluid in a pipe by means of a sensor housed in a brass sheath immersed in a threaded pocket insert in the pipe.
Code Description Application Sensing Data Sheet SIH 010 Immersion sensor with brass pocket 0 ... 99 °C NTC 10 kΩ N 140 SIH 010/Inox Immersion sensor with stainless steel pocket 0 ... 99 °C NTC 10 kΩ N 140 SIR 010 Direct immersion rapid sensor 0 ... 99 °C NTC 10 kΩ N 140 STH 001 Immersion hight temperature sensor 0 ... 300 °C Pt 1 kΩ N 140
Shock-proof plastic case: 45 x 80 x 35; Protection: IP54; Cable entry gland: PG11. Brass or stainless steel well: 1/2" x 80 mm (*); Sensor pocket: Ø 7 x 68 mm.
