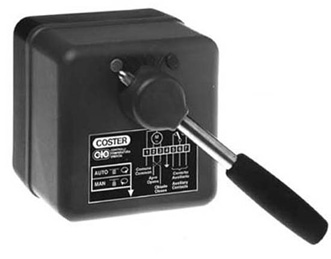

Reversible 90° rotary actuator with manual release
Application
Actuator for rotary slipper and ball valves. Reversible with rotation angle fixed at 90°.
3-wire electrical control (Common, Opens, Closes). Manual release is built-in.
|
|
| Code | Power supply
V~ (VA) | Run time
(s) | Nominal
torque
kg/cm. (Nm) | Starting
torque
kg/cm. (Nm) | Valves (up to DN) | Data Sheet | VSG/VFG
VSF/VFF | 2F | XDG
XLG | YDG 2 | 2S | | | | | | | mixing | butterfly | sfera | sfera | sfera | | | CVH 638 | 230 (4,5) | 630 | 150 (15) | 200 (20) | 100 | 200 | 2" | 2"1/2 | 65 | M 121 | | CVH 634 | 24 (4,5) | 630 | 150 (15) | 200 (20) | 100 | 200 | 2" | 2"1/2 | 65 | M 121 | | CVH 218 | 230 (4,5) | 210 | 150 (15) | 200 (20) | 100 | 200 | 2" | 2"1/2 | 65 | M 121 | | CVH 214 | 24 (4,5) | 210 | 150 (15) | 200 (20) | 100 | 200 | 2" | 2"1/2 | 65 | M 121 | | CVH 118 | 230 (4,5) | 105 | 150 (15) | 200 (20) | 100 | 200 | 1"1/2 | 2"1/2 | – | M 121 | | CVH 114 | 24 (4,5) | 105 | 150 (15) | 200 (20) | 100 | 200 | 1"1/2 | 2"1/2 | – | M 121 | | CVH 058 | 230 (5) | 52 | 150 (15) | 200 (20) | 100 | 200 | 2" | 2"1/2 | – | M 121 | | CVH 054 | 24 (5) | 52 | 150 (15) | 200 (20) | 100 | 200 | 2" | 2"1/2 | – | M 121 |
|
|
|
