RFG 651 - 652 - 653 Print

Gas detectors in DIN 6 module

Application

Monitor, by means of remote sensors, the concentration of gas in the air, and, when this exceeds the threshold level, activate the operational relay and the external alarms.
Complies with CEI EN 50194 and CEI EN 50244 regulations.
Essential sensors: 1, 2 or 3 sensors for methane, LPG and carbon monoxide.

Schematic diagram Certifications Catalogue

Code	Description	Data Sheet
RFG 651	Gas detector for one remote sensor	G 512
RFG 652	Gas detector for two remote sensors	G 512
RFG 653	Gas detector for three remote sensors	G 512

Features

Data sheet

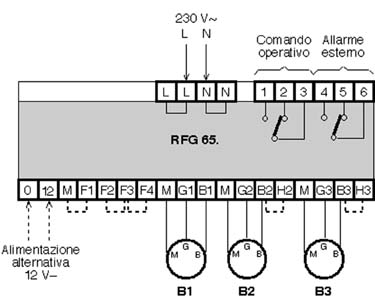

Wiring diagram

Schematic diagram

Certifications

Power supply: 230 V ~ or 12 V –; Consumption: 6 VA; DIN 105 x 115 modular enclosure; Protection: IP 40.
Adjustable alarm threshold: methane = 0.5 ... 1.25 %; propane = 0.22 ... 0.56 %; CO = 0.02 ... 0.05 %.
Pre-alarm ( 63 %)alarm and fault sensors alarm.
Voltage-free SPDT output; rating 250 V ~, 5 (1) A for control N.O. or N.C. valves.
