Damper actuators

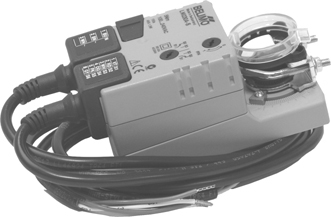

DAMPER ACTUATORS Application

Actuators suitable for operating dampers in air handling sites.
Rotary movement with 90° rotation angle. Mounted directly on damper rod.

CSL ...

Catalogue

Code	Power supply V~ (VA)	Control	Auxiliary contacts	Dampers m²	Torque N/m	Run s	Data Sheet
CSL 138	230 V~ (4)	2 or 3 points	No	1	5	150	E 921
CSL 138/C	230 V~ (4)	2 or 3 points	1	1	5	150	E 921
CSL 134	24 V~/– (2)	2 or 3 points	No	1	5	150	E 921
CSL 134/C	24 V~/– (2)	2 or 3 points	1	1	5	150	E 921
CSL 104	24 V~/– (2)	2 ... 10 V–	No	1	5	150	E 921

Download

Wiring diagram

Power supply: 230 V~ or 24 V~/-; Protection: IP 54.
