XCC 618

Compensating optimiser for 1, 2-stage modulating burners with 0.10 V DC input

Application

Designed for the total control of burner/boiler (condensation or not).
The 1, 2-stage or modulating burner can be controlled by switches or via the 0…10 V input.
By equipping all the boilers present on site with XCC 618, and a single boiler with XTC 638, you can achieve a sophisticated sequence with 1, 2-stage or MODULATING BURNERS and so obtain the maximum SEASONAL OUTPUT. The whole system is especially suitable also for CONDENSATION BOILERS.
Data communication with other boilers and other controllers via C-Ring connection..
Essential sensors: 1 boiler sensor..
Optional sensor: 1 anticondensing sensor, 1 flue gases sensor, 1 outside sensor.

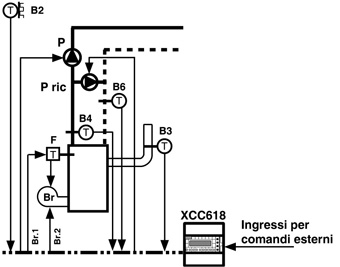

Schematic diagram Certifications Catalogue

Code	Description	Data Sheet
XCC 618	Compensating optimiser for 1, 2-stage modulating burners with 0.10 V DC input.	–

Data sheet

Wiring diagram

Accessories

Certifications

Power supply: 230 V~: Consumption: 5 VA; Modular housing DIN 105 x 115; Protection: IP 40
Digital programming by means of 4 keys and alphanumeric display.
Control of boiler temperature at set point or according to the request of the various users via C-Ring (if the controllers are COSTER) or by a 0…10 V– signal.
Control of a 1- or 2-stage or modulating burner.
Option of sequence under control of XTC 638.
Automatic change GMT/BST
Periodic operation of summer site exercise of valves and pumpse.
Metering of degree-days, of burner operating hours and of number of starts.
Alarms for short or open circuits to sensors and for functional faults site and devices.
C-Ring connection for local exchange of data with other COSTER controllers.
Option of C-Bus connection for exchange data with local PC or remote Telemanagement PC..
XCC 618 is provided with a 0…10 V output adaptable to any generator fitted with this input.
XCC 618 is also provided with a 0…10 V input for control AS POWER or AS TEMPERATURE.
